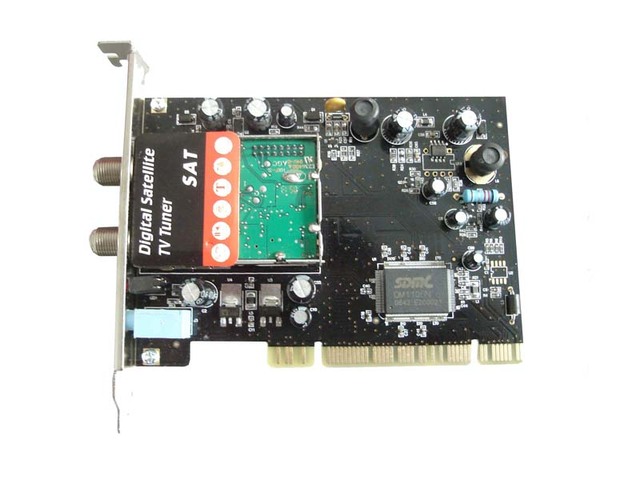

1.1 product Introduction

DVB-S can implement IP data decoding and MPEG-2 A/V decoding.

DVB-S can be widely used in software download, fast accessing internet, distance education, distance treatment,distance shopping, newspaper transmission system, video conference, and VOD, etc. DVB-S is based on an open system, supporting upgrade either from local disc or from internet.

Note: This manual is only used for DVB-S product.

1.2 Features

Fully compliant with DVB-DATA ETSI/EN 301 192 standard

Fully compliant with supports DVB-S Protocol (EN 300 744)/MPEG-2

Support USB 2.0 Hi-Speed

Input frequency: 950 MHz ~ 2150 MHz

Symbol rate: 2~ 45 MS/s

Compliant with TCP/IP, UDP protocol

High-speed data download with FTP,HTTP and SMTP protocol

Support for IP unicast and multicast

Support DiSEqC1.0/1.2 protocol

Max. 32PIDs can be decoded simultaneously

Support Electronic Program Guide

Support Multi-channel Recording

Support TS Stream Recording

Support Scheduler and Scheduler Play

Support Parent Lock

Support SDTV/HDTV

Support Real Time Digital Video Recording (DVR)

Support IR-Remote Controller

LNB Power Supply: 13/18V <400mA

(Note: Some features are only provided by content provider, be sure to check if your content provider supports them or not.)

1.3 System Requirements

IBM PC compatible: Pentium III 667MHz or higher

128MBytes memory or more

32MBytes display memory or more

Hard Disk free space of 500MBytes or more

OS supported:Windows2000 for SP4/WindowsXP for SP2 (WindowsXP :Recommended)
